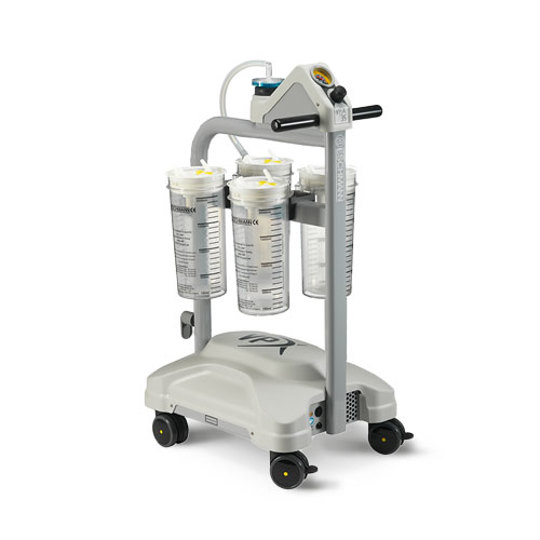

VPX35 Advanced Portable Suction
VPX35 Advanced Portable Suction
High power suction unit delivering vacuum flow rate of >35l/min.
The VPX suction units are robust, simple to use, fully mobile and capable of achieving high flow rates.
Also available in a pneumatic footswitch variant.
Part no. 8235060
Similar Products
VPX45 Advanced Portable Suction
Product Information
- Deliver a flow rate of >35 l/min
- Simple and intuitive to use
- Fully mobile for maximum flexibility
- Easy clean design ensuring infection control compliance
- Oil-free precision vacuum pump delivering accurate levels of suction
- Footswitch variants available
- Product includes disposable liners, which help to reduce the risk of cross-infection, and enable easy & safe disposal
- Controls, handles, jars & hydrophobic filter at a comfortable height for easy operation & mobility
- 2 locking front castors
| Connectivity: | Up to 4 jars |
| Mains Voltage: | 230 V |
| Mains Frequency: | 50 Hz |
| Power Consumption: | 115 Watts |
| Filter: | Hydrophobic/bacterial filter |
| Pump Type: | 2-headed diaphragm pump |
| Pump Performance: | Airflow rate: >35 litres/min Vacuum: 660 to 680 mmHg Vacuum: 88 to 90.7 kPaG |
| Duty Cycle: | Continuous |
| Dimensions (Basic Device): | 360mm (w) x 500mm (l) x 880mm (h) |
| Noise (during free flow): | <59 dB |
| Operating Conditions: | Operating temperature: 5°C to 40°C Pressure: 69kPa to 106kPa Humidity: 30% to 75% RH non-condensing |
| Weight (bare unit): | 10.25 kg |
| Storage & Transport Environment: | Storage temperature: -30°C to 50°C Pressure: 69kPa to 106kPa Humidity: 30% to 90% RH non-condensing |
| Protection Class (applied parts): | Type BF |
| Protection Class (IEC 60601-1): | Class 1 |
| Class of Risk (MDD - Medical Devices Directive) & MDR (Medical Device Regulations): | Class IIa |
Please always refer to the Eschmann website for the latest versions.
Consumables & Accessories
The Eschmann range of consumables and accessories for your suction equipment cover every aspect of your protocols. Available to purchase online, our trustworthy range of products are here to keep you, your environment and your equipment safe, clean and compliant.
